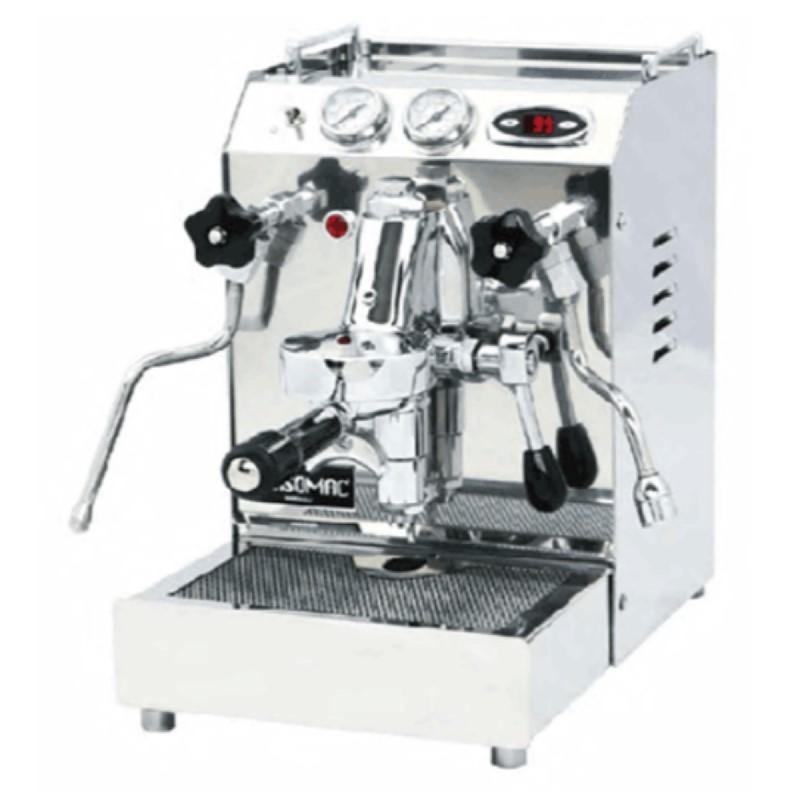

Isomac | TEA PID Coffee Machine (Domestic/Small Office)
Compact espresso coffee and cappuccino machine with slits which assure a correct internal airing. In the front of the machine, there are two different gauges for the monitoring of the pump and boiler pressure. Espresso coffee and cappuccino machine manufactured with the components of the commercial machines.
- Original, semi-automatic commercial E61 brewing head with level, bronze cams, weight kg 4 (9 LBS).
- Stainless steel boiler, 1.2 Lt capacity, with thermosiphonic system.
- Microprocessor to automatically check and refill the boiler with water.
- 304 stainless steel bright body.
- One gauge to indicate the pump pressure and one gauge to indicate the boiler pressure.
- Steam and hot water stainless steel jets with cool-touch anti-burn system.
- Full-size commercial one and two cups filter handles and baskets.
- P.I.D – allows electronic temperature adjustments
- Dimensions(LxHxD) 270x410x435 mm
- Weight 21 kg
- Water tank 3 Lt
- Power 1400 W
- Boiler 1.2 Lt
- Vibration pump 15 bar
What is PID? - The Basics:
If you've been following along with us, you probably know that temperature is extremely important to brewing coffee. While different brew methods and roasts demand different temps, stability is key. PID controllers help ensure that stability. Machines without these devices often use a simple thermostat that isn't as accurate as a PID controller. By comparison, a machine with PID control monitors itself to ensure temperature stability and control.
PID stands for Proportional-Integral-Derivative. Quite a mouthful! On a basic level, a PID controller uses the PID algorithm to determine the best way to control whatever process it's used for. PID controllers are used in a wide range of industrial applications, in our case, it controls the temperature in your espresso machine!
A traditional thermostat has a tendency to hit a desired temp, then turn off the heating element as the temp rises above its target. Then it'll kick back on as the temperature falls below the target. This results in uneven temperatures that can result in inconsistent shot quality in an espresso machine. There are ways to mitigate this with many machines, but it often means learning how to ride the temperature wave with your specific machine. This may require timing the heat-up time precisely or running water through the group head before pulling a shot.
PID controllers use the PID algorithm to keep your machine at the proper brew temperature. This also means the you can directly control the temperature of the machine. While not true in every case, PID controllers are usually visible on the machine. They also usually feature control buttons to increase or decrease the brewing temperature. While this won't matter for most, for some home baristas, experimenting with different roasts and temps is key!
