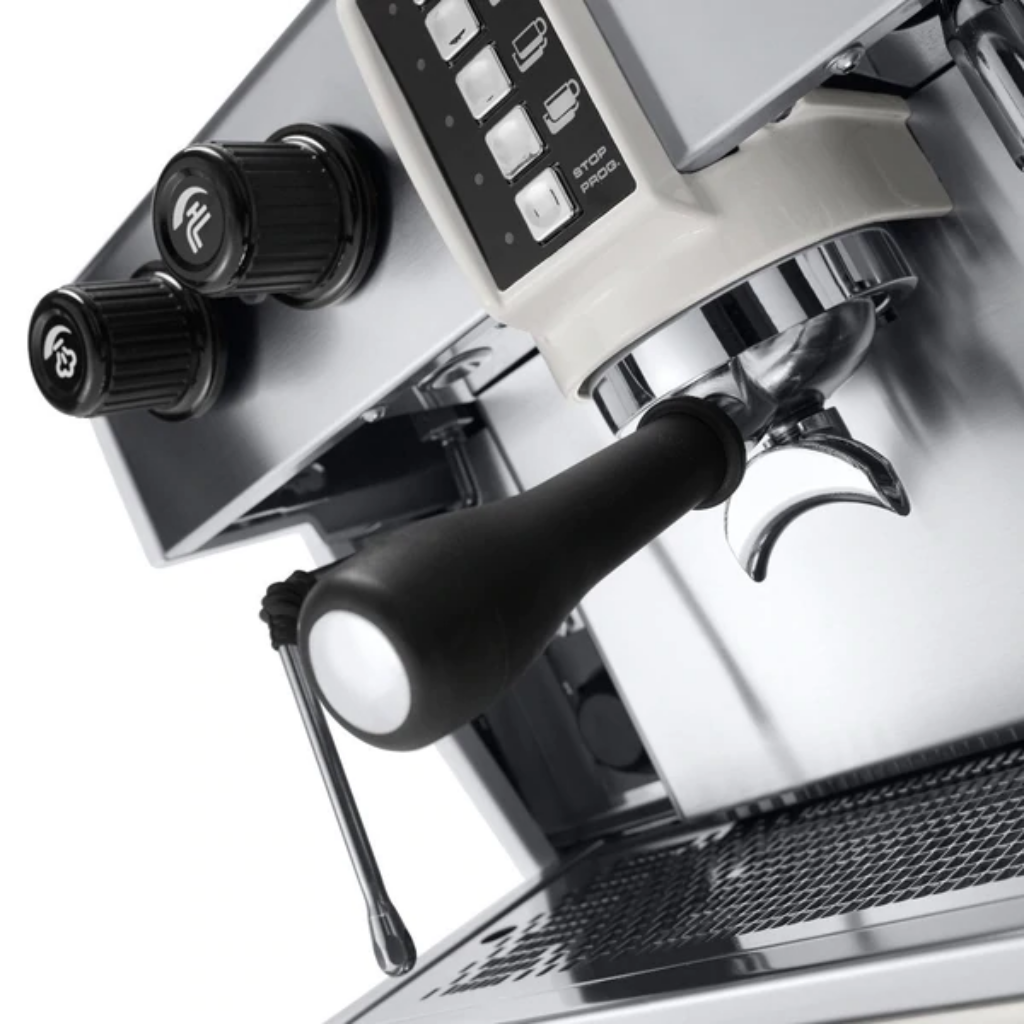

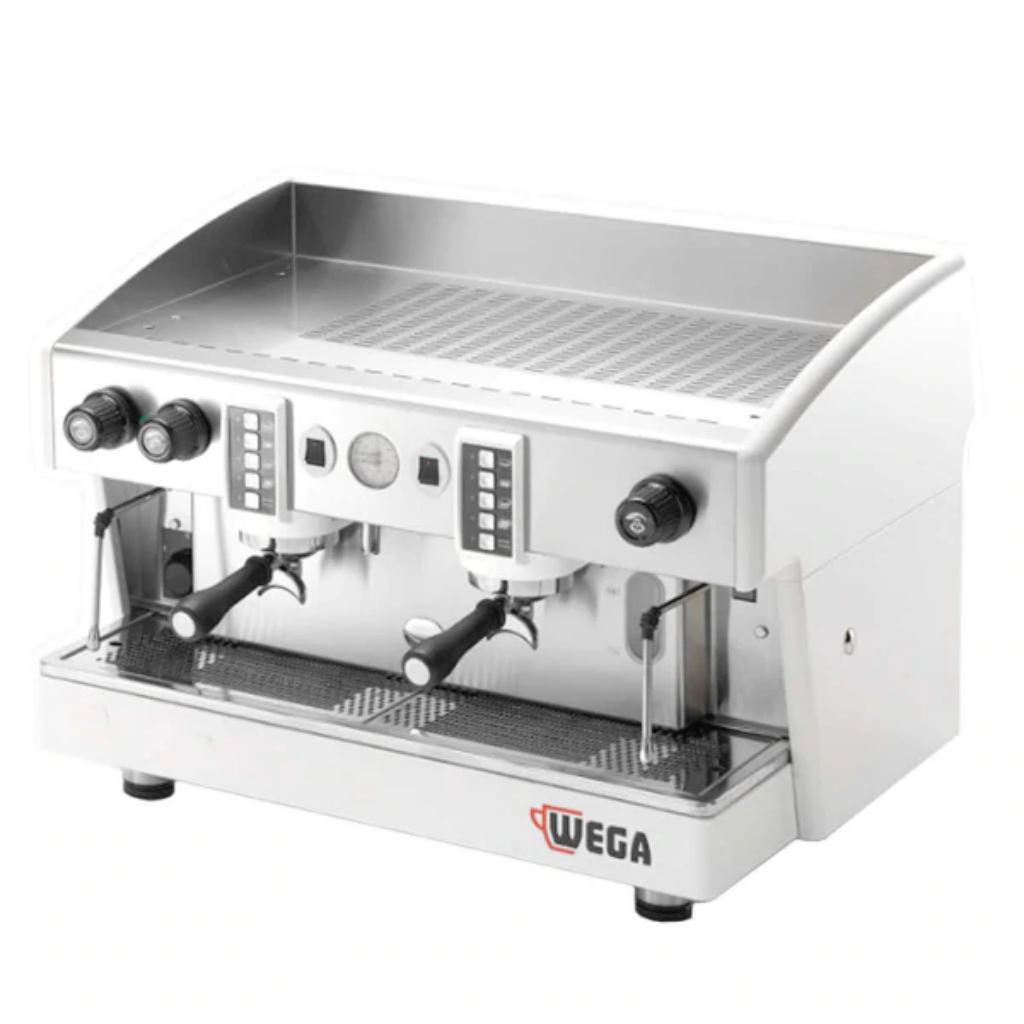

The Atlas automatic EVD is your basic workhorse with all the proven dependability of a Wega-built machine at an affordable price with unmatched value to the coffee house owner! With four programmable doses per group head, manual dispense buttons, two steam wands, and a hot water tap all at an affordable price, there is no wonder why this is our most popular machine!
Thermo-compensated group heads with a pre-infusion chamber, in combination with the heat exchanger system, lends to stable water temperature assuring quality in the cup. It comes standard with a built-in, water-cooled, adjustable rotary vane pump.
WegaĀ Atlas Commercial Features
- Built-in rotary pump
- E61 group headsĀ
- 2x High power steam wands (2 group version)
- 1x Hot Water Spout
- Automatic water refilling (connected to water mains)
- Site-level glass to monitor water levels
- Reliable steel build
- High capacity copper boilers
- Water-cooled pump to prevent overheating
- Flanged boilersĀ allow easy access for improved serviceability and cleaning
- Can beĀ run on gasĀ for mobile and off-grid operations (the pump must still run on electricity)
- Cup warming area
- Boiler pressure gauge
- Pump pressure gauge
- Electromechanical switches per group (EPU Semi-Auto Version)
- 4 Programmable volumetric doses per group (EVD Auto Version)
WegaĀ Atlas commercial espresso machine specifications
|
2 Group Compact |
2 GroupĀ |
3 Group |
Voltage |
230-240-400V |
230-240-400V |
230-240-400V |
Power |
3000W
|
3700W |
5300W |
Boiler size |
7L |
12L |
17L |
Dimensions (W x D x H) |
53 x 57 x 52 cm |
74Ā x 57 x 52 cm |
98 x 57 x 52 cm |
Nett WeightĀ |
65kg |
78kg |
111kg |
Gross Weight |
70kg |
84kg |
120kg |
Ā
EVD vs EPU
Electronic espresso coffee machine, with programmable volumetric dosing.
- EPU: semi-automatic version.
Semi-automatic espresso coffee machine, operated by means of electro-mechanical push buttons, with water auto-level as standard.
